An Asse 1022 Dual Check Valve provides a practical way to support potable-water backflow protection where local code allows it. It is designed to reduce reverse flow that could carry contaminants, corrosive substances, or carbonic acid into drinking-water lines. Approved devices are essential for safeguarding potable supplies and following local and national codes.
Asse 1022 Dual Check Valve
Backflow preventer manufacturers, including Watts, make devices that are built to meet ASSE performance requirements and recognized certifications. These may include NSF/ANSI 61 and UL/FM approvals. Those credentials help verify material safety, pressure durability, and overall assembly performance. Although some authorities require higher-protection assemblies, an Asse 1022 device may be a approved low-hazard option where the local authority permits it.
The Asse 1022 Dual Check Valve is often chosen because it is easy to install. This guide compares Asse 1022 devices alongside higher-protection standards, including Asse 1013. It also outlines selection, installation, maintenance, and compliance steps so the unit can meet plumbing-code expectations and industry guidance.
Understanding Backflow And The Role Of Dual Check Valves
Backflow creates a serious risk because water can reverse direction inside a plumbing system. That backward flow may carry contaminants into potable lines and reduce the safety of drinking water. Water authorities and adopted plumbing codes require backflow protection to help prevent this kind of contamination.
Backflow usually happens because of one of two hydraulic conditions. Backsiphonage occurs when supply pressure drops and creates a vacuum that pulls water backward. Backpressure happens when downstream pressure exceeds supply pressure and forces water in the wrong direction. Knowing the difference between backsiphonage and backpressure matters because each condition can call for a different type of protection.
In homes, common cross-connections include irrigation systems, garden hoses, boilers, and chemical injection points. Commercial facilities may also include booster pumps, closed-loop HVAC systems, process equipment, and similar connections. Without proper protection, these connections can become sources of pollutants.
Dual check valves, including the Asse 1022 model, are designed for low-hazard protection. They are used where reverse flow might affect taste, odor, or water quality without creating a direct health hazard. The Asse 1022 Backflow Preventer is a compact solution for many applications identified in plumbing codes.
Correct selection and installation depend on the applicable codes, listings, and standards. ASSE performance requirements, together with ANSI-accredited standards development, help support product acceptance. Installers must follow local plumbing code language, including references such as the 2018 UPC and AWWA M-14, when installing Asse 1022 devices.
Typical approved uses include residential irrigation, HVAC makeup lines, and some commercial low-hazard cross-connections. When the hazard level is higher, authorities typically require a more protective assembly.
| Problem | Common Cause | Typical Protection |
|---|---|---|
| Backflow caused by suction | Main pressure loss from firefighting, broken lines, or supply interruption | Asse 1022 Backflow Preventer for low-hazard use, or air gap where code requires |
| Reverse flow from downstream pressure | Pressure created by booster systems, elevated storage, or heated closed systems | Dual check protection for low risk, or reduced-pressure protection for high risk |
| Risk to potable water quality | Fertilizers, boiler chemicals, cleaning agents, or process liquids | Classify the hazard and use Asse 1022 or a higher-protection assembly |
What Backflow Is And How It Happens
Backflow means water moves in reverse from a fixture, device, or private system toward the public supply. It may be caused by negative supply pressure, backsiphonage, or excess downstream pressure. Either condition can allow contaminants to enter potable lines and threaten drinking-water quality.
Why Low-Hazard Systems Use Dual Check Valves
Dual check valves provide two independent check mechanisms in one body. This redundancy protects low-hazard cross-connections against reverse flow. Asse 1022 devices meet performance criteria for nuisance-level risks and are common where codes allow double-check assemblies.
Asse 1022 Dual Check Valve Overview

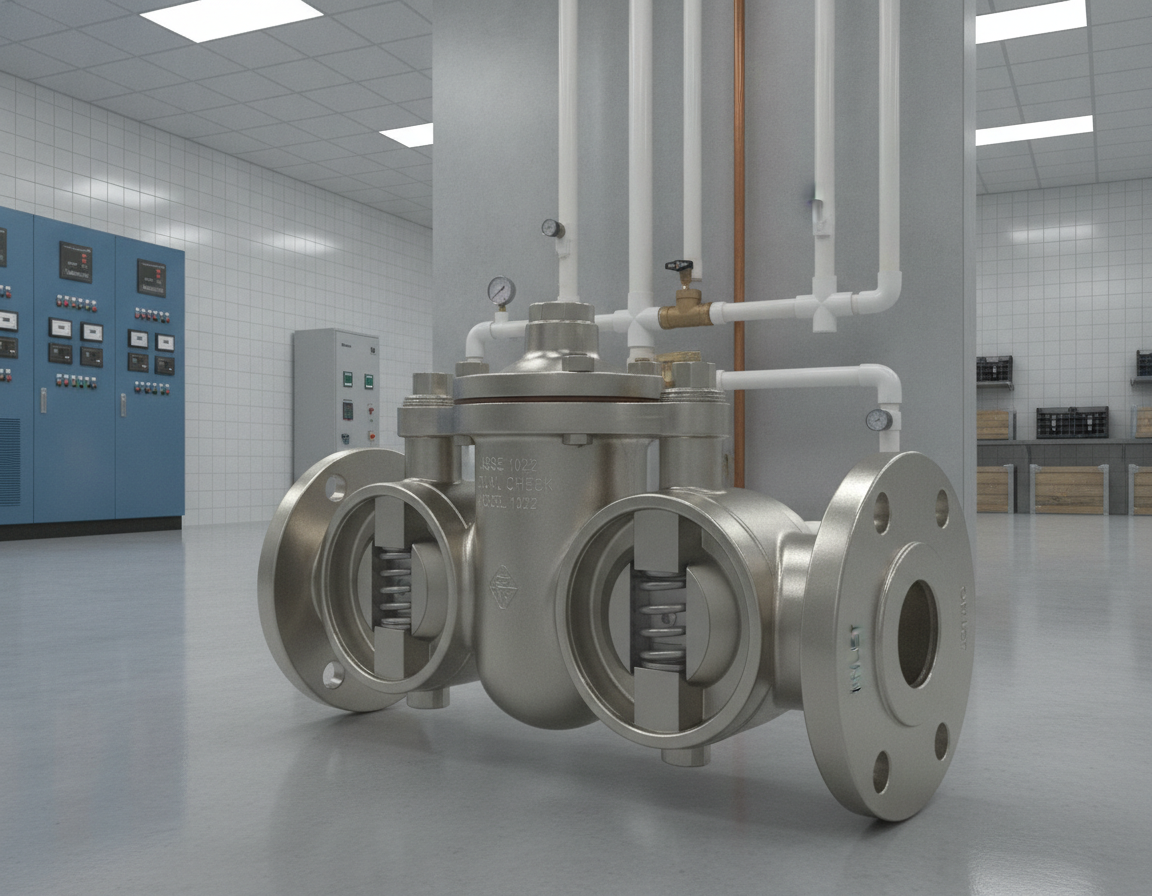

An Asse 1022 Dual Check Valve is a compact backflow prevention device used for low-hazard potable-water applications. It uses two independent spring-loaded checks arranged in series. This arrangement prevents reverse flow and provides redundant sealing. It maintains serviceability and reduces contamination risk during pressure shifts or brief backpressure events.
Functional Overview And Main Features
Spring-loaded check mechanisms help the valve close positively when flow or pressure changes. Many models include serviceable internal parts and replaceable seats. That design can shorten maintenance time and reduce long-term ownership costs.
Manufacturers produce Asse 1022 units in materials such as bronze, brass, corrosion-resistant alloys, and engineered plastics. Available sizes are designed to match common pipe diameters, pressure ratings, and potable-water system requirements.
Compact bodies, service access, and built-in test ports can make installation and inspection faster. The Asse 1022 Backflow Preventer fits tight spaces where larger assemblies cannot. It meets flow requirements for typical low-hazard applications.
Standards And Certifications Supporting ASSE 1022 Devices
ASSE standards establish baseline performance tests and functional thresholds. These tests verify reliable operation. Many products exceed these minimums, reducing failure risk and extending maintenance intervals.
NSF/ANSI 61 certification helps confirm that wetted materials are suitable for drinking water and do not leach harmful contaminants. UL/FM approvals can support confidence in durability, pressure resistance, and stress-tested performance. This gives specifying engineers additional assurance.
When combined with ANSI-accredited development, these approvals improve the Asse 1022 Dual Check Valve’s acceptance in plumbing codes and project specifications. For teams that need verified material safety and tested performance, ASSE 1022 compliance, NSF/ANSI 61 certification, and UL/FM marks can form a strong compliance package.
Comparison With Related Standards And Products: ASSE 1013, ASSE 1012, ASSE 1024
This section compares common backflow-protection options so the device can be matched to the hazard level and code requirement. It highlights practical differences between RPZ, double-check, and other dual-check devices used in the United States.
When choosing a device, begin with the hazard level. ASSE 1022 double-check assemblies suit low-hazard services such as irrigation and some HVAC makeup lines. By contrast, Asse 1013 RPZ units are designed for high-hazard cross-connections where contaminants could create a health risk. Asse 1024 covers reduced-pressure principle devices for severe contamination scenarios. Use Asse 1012 standards when specifying certain dual-check products or service-line applications.
ASSE 1022 Versus ASSE 1013 And ASSE 1024
ASSE 1022 double-check devices rely on two check valves, and where applicable shutoff valves, to control backflow in low-hazard uses. ASSE 1013 RPZ devices include a relief valve that vents to atmosphere when internal pressure drops, providing a higher safety margin. Asse 1024 reduced-pressure principle devices use the same relief concept but apply to a broader set of severe contamination risks.
Testing frequency and complexity differ between these products. Asse 1013 RPZ units commonly require annual testing, post-event checks, and relief-valve verification. Double-check assemblies under ASSE 1022 require periodic testing to confirm both checks operate, with simpler procedures than RPZ testing.
When ASSE 1012 Or Other Dual-Check Standards Apply
Asse 1012 covers requirements for selected dual-check configurations used in low- or moderate-hazard applications. Choose this standard when local code or the water authority allows a dual-check format but requires a recognized standard beyond ASSE 1022.
Codes vary by jurisdiction. Many municipalities following the 2018 UPC require ASSE 1013 RPZ for high-hazard cross-connections. Utilities may allow ASSE 1022 for low-hazard applications or specify Asse 1012-certified dual-check devices for certain service-line uses. Before installation, confirm the required protection level with the local water authority or authority having jurisdiction.
| Feature | ASSE 1022 | ASSE 1013 RPZ | ASSE 1024 Device | ASSE 1012 Device |
|---|---|---|---|---|
| Typical use | Low-risk potable-water cross-connections | High-risk contamination protection | Serious contamination threats requiring reduced-pressure protection | Dual-check configurations for specific service applications |
| Protection level | Low | High hazard | High | Application-dependent low-to-moderate protection |
| Relief feature | Not included | Includes atmospheric relief valve | Required relief feature | Usually no relief valve unless required |
| Inspection requirement | Routine check-mechanism verification | Annual testing and relief valve verification | Annual testing and relief checks | Testing as required by the water authority |
| Usual installations | Irrigation and makeup water for noncritical HVAC | Boiler makeup, chemical feed, and health-hazard connections | Reduced-pressure protection for severe hazard sources | Specific service uses approved by local code or utility |
| Common code treatment | Permitted where local authority approves low-hazard use | Commonly required for high-hazard conditions | Used where serious contamination protection is required | Applied when the authority requires this dual-check standard |
When comparing ASSE 1022 with RPZ assemblies, consider the hazard level, safety margin, and testing burden. RPZ versus double-check decisions depend on hazard assessment, local code, and water authority rules. If requirements are uncertain, follow the higher protection level required by the authority having jurisdiction.
Installation Maintenance And Code Compliance
A correct Asse 1022 installation starts with careful planning. Dual check valves should be installed where they are accessible and oriented according to the manufacturer’s instructions. Leave adequate clearance for service access, testing ports, shutoffs, and unions. That clearance allows certified testers or service technicians to reach fittings without unnecessary disassembly.
Use sound piping practices so the installation does not create a new cross-connection risk. Avoid installing devices where downstream cross-connections could undermine the protection. Install shutoffs, unions, and drain provisions according to manufacturer instructions and local codes. Make sure unions and test cocks remain accessible for routine service and backflow testing.
Maintenance intervals are usually determined by local regulations, water authority rules, and site requirements. Many areas require annual inspections and backflow tests by certified professionals. Clear records of service, repairs, and test results help demonstrate compliance during audits, inspections, and permit reviews.
Certified testers can provide documentation that meets many regulatory and water-authority requirements. AWWA M-14 can be used as a reference for inspection, maintenance, and backflow-prevention practices. Following recognized guidance can help reduce downtime and identify wear before it becomes a leak or failure.
Selecting devices with recognized listings can simplify inspection and approval. Products with ASSE approvals and NSF/ANSI 61 installation ratings are often accepted more readily by plumbing inspectors. UL/FM compliance also matters for commercial and fire-protection connections where third-party recognition is important.
Before starting, identify the applicable plumbing code edition and local water authority requirements. Some locations may require an RPZ instead of a dual check. Confirm the permit process and make sure the chosen Asse 1022 installation meets local standards to avoid delays and rework.
Create a consistent record-keeping process for the device. Store manufacturer cut sheets, test certificates, and repair invoices with a map of the device location. This simplifies future inspections and supports transparent compliance during regulatory reviews.
Where To Buy And Product Selection Guidance
Choosing the right device means matching size, pressure rating, and materials to the plumbing system. Confirm that the Asse 1022 Dual Check Valve matches the pipe diameter and peak-flow requirement. Also compare pressure ratings with maximum working pressure and expected surge conditions.
Material compatibility is a key consideration in potable-water systems. Use brass, bronze, or NSF/ANSI 61-certified plastics to reduce corrosion risk and avoid harmful leaching. Review the manufacturer’s chemical-resistance data for local water chemistry.
Certification checks simplify approval and inspection. Confirm that the product lists ASSE 1022 compliance and NSF/ANSI 61 certification. If local codes demand UL or FM approval, confirm those marks before purchase.
Consider supplier reputation when buying ASSE 1022 devices. Authorized dealers can provide genuine products, documentation, and warranty assistance. Installation Parts Supply is a reliable distributor that stocks certified units and can assist with model selection.
Warranty terms and pricing policies affect final cost. Review manufacturer warranty limits and any MAP rules that hide prices online. Some stores require cart checkout to reveal final pricing while preserving full warranty through authorized sales channels.
Choose Materials
- Match pipe size and flow to the Asse 1022 Dual Check Valve model.
- Use NSF/ANSI 61-certified components for potable-water systems whenever required or available.
- Verify pressure rating and surge tolerance for the Asse 1022 Backflow Preventer.
How To Choose A Supplier
- Purchase from certified or authorized dealers so documentation is available for inspections.
- Choose vendors that offer sizing support and warranty handling.
- Installation Parts Supply commonly offers certified stock and practical model-selection guidance.
| Selection Factor | Details to Confirm | Why It Helps |
|---|---|---|
| Sizing and flow demand | Line diameter, expected flow, and model capacity data | Helps avoid pressure drop and supports correct function |
| Material compatibility | Approved metals or certified plastics for potable water | Protects potable water quality and resists corrosion |
| Pressure Rating | Manufacturer pressure limits and site surge conditions | Reduces risk of damage during pressure changes |
| Certifications | Required approvals for code, utility, or project specifications | Supports code compliance and regulatory acceptance |
| Supplier | Supplier reputation, product authenticity, and technical help | Reduces risk of counterfeit parts and improves after-sale support |
| Warranty terms and pricing rules | Coverage limits, pricing visibility, and replacement support | Prevents surprises and supports long-term ownership |
Summary
ASSE 1022 double-check valves are dependable, space-saving choices for low-risk backflow prevention where local authorities allow them. The Asse 1022 Dual Check Valve uses two spring-loaded checks and materials that meet NSF/ANSI 61 and ASSE standards. This helps reduce contamination risk in approved uses such as irrigation systems and certain HVAC makeup lines.
Choosing the right device depends on hazard level and code compliance. Use an Asse 1022 Backflow Preventer for low-hazard scenarios. For high-hazard applications, authorities may require ASSE 1013, ASSE 1024, or another reduced-pressure assembly. Proper selection streamlines permitting and improves water-system safety.
For backflow-prevention compliance, follow manufacturer instructions and local plumbing-code requirements. Where applicable, this may include the 2018 UPC, local amendments, and water authority rules. Buy certified products from trusted suppliers or authorized dealers. Confirm ASSE listings, NSF/ANSI 61 certification, and UL or FM approvals when those marks are required.
Reliable backflow protection depends on correct selection, accurate installation, and routine maintenance. These steps, supported by certified devices and qualified testers, help safeguard potable water. They also make regulatory acceptance, inspection, and documentation easier. Following these practices helps an Asse 1022 Dual Check Valve or other approved backflow solution perform reliably over time.
